S3 Connector

Configure the S3 connector to collect logs and data files from Amazon S3 buckets for AI-powered analysis of archived logs, data lakes, and object storage.

  14 minute read

Overview

The S3 connector collects logs and data files from Amazon S3 buckets. S3 is AWS’s object storage service for archived application logs, data lake content, AWS service logs (CloudTrail, VPC Flow Logs, ELB), backup files, and compliance data. Content streams into Edge Delta Pipelines for analysis by AI teammates through the Edge Delta MCP connector.

The connector uses S3 event notifications delivered through SQS to automatically ingest new objects as they arrive. It supports multiple compression formats (gzip, zstd, snappy), flexible file filtering with regex, and both IAM role and access key authentication.

When you add this streaming connector, it appears as a S3 source in your selected pipeline. AI teammates access this data by querying the Edge Delta backend with the Edge Delta MCP connector.

Add the S3 Connector

To add the S3 connector, you configure an SQS queue to receive S3 event notifications and provide AWS credentials to access both SQS and S3.

Prerequisites

Before configuring the connector, ensure you have:

  • Amazon S3 bucket containing logs or data files to analyze
  • SQS queue (same region as S3 bucket recommended; cross-region supported via advanced S3/SQS configuration overrides)
  • S3 bucket event notifications configured to send ObjectCreated events to SQS queue
  • AWS credentials (IAM role ARN or access key ID/secret)
  • Identified which files to ingest (compression format, path patterns)

For a step-by-step walkthrough of the SQS and IAM setup, see Use Edge Delta to Ingest from an S3 Source.

Create SQS queue and configure S3 notifications:

# Create SQS queue
aws sqs create-queue \
  --queue-name s3-log-notifications \
  --region us-east-1

# Configure S3 event notifications
aws s3api put-bucket-notification-configuration \
  --bucket my-log-bucket \
  --notification-configuration '{
    "QueueConfigurations": [
      {
        "QueueArn": "arn:aws:sqs:us-east-1:123456789012:s3-log-notifications",
        "Events": ["s3:ObjectCreated:*"]
      }
    ]
  }'

SQS queue policy (allow S3 to send messages):

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {"Service": "s3.amazonaws.com"},
      "Action": "SQS:SendMessage",
      "Resource": "arn:aws:sqs:us-east-1:123456789012:s3-log-notifications",
      "Condition": {
        "ArnLike": {"aws:SourceArn": "arn:aws:s3:::my-log-bucket"}
      }
    }
  ]
}

IAM permissions (for Edge Delta to access S3 and SQS):

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["s3:GetObject", "s3:ListBucket"],
      "Resource": [
        "arn:aws:s3:::my-log-bucket",
        "arn:aws:s3:::my-log-bucket/*"
      ]
    },
    {
      "Effect": "Allow",
      "Action": [
        "sqs:ReceiveMessage",
        "sqs:DeleteMessage",
        "sqs:DeleteMessageBatch",
        "sqs:GetQueueAttributes"
      ],
      "Resource": "arn:aws:sqs:us-east-1:123456789012:s3-log-notifications"
    }
  ]
}

Configuration Steps

  1. Navigate to AI Team > Connectors in the Edge Delta application
  2. Find the S3 connector in Streaming Connectors
  3. Click the connector card
  4. Enter SQS URL (SQS queue receiving S3 notifications)
  5. Enter AWS Region (where S3 bucket and SQS are located)
  6. Configure authentication: Either AWS Access Key ID/Secret Key OR Role ARN (with optional External ID)
  7. Optionally configure Advanced Settings for compression, filtering, metadata
  8. Select a target environment
  9. Click Save

The connector deploys and begins monitoring SQS queue for S3 event notifications.

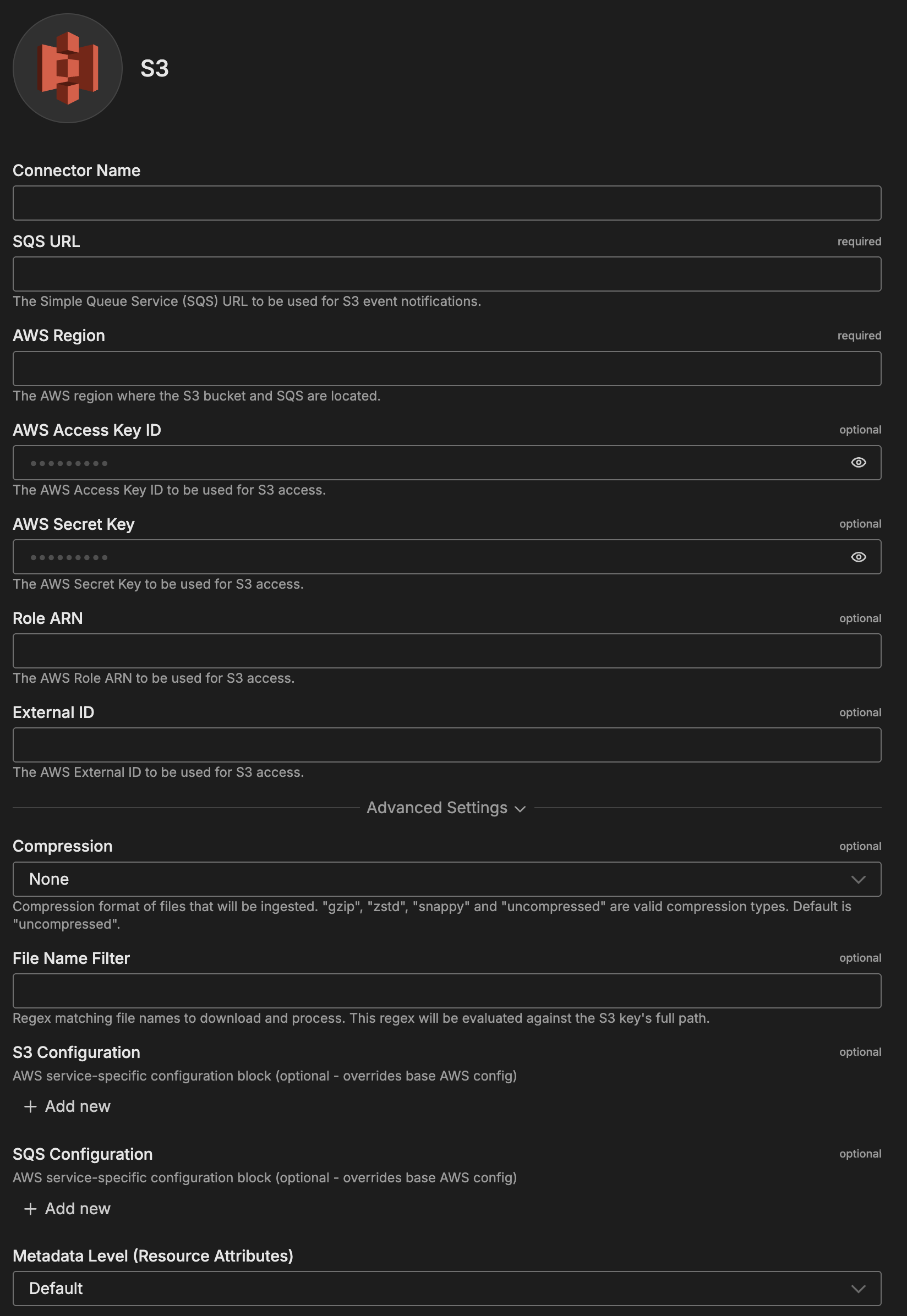

S3 connector configuration showing SQS integration, authentication, and filtering options

Configuration Options

Connector Name

Name to identify this S3 connector instance.

SQS URL

SQS queue URL that receives S3 event notifications when new objects are created.

Format: Full HTTPS URL to SQS queue

Example: https://sqs.us-east-1.amazonaws.com/123456789012/s3-log-notifications

Finding SQS URL: AWS Console → SQS → Select queue → Copy Queue URL

AWS Region

AWS region for the base connector configuration. Typically matches both S3 and SQS regions; configure service-specific overrides in Advanced Settings for cross-region deployments.

Format: Valid AWS region identifier (for example us-east-1)

Examples:

  • us-east-1
  • us-west-2
  • eu-west-1

AWS Access Key ID

AWS access key ID for authentication. Use this OR Role ARN, not both.

Format: 20-character AWS access key starting with “AKIA”

Example: AKIAIOSFODNN7EXAMPLE

Note: IAM roles are more secure for production. Use access keys only for development/testing.

AWS Secret Key

AWS secret access key for authentication. Required if Access Key ID provided.

Format: 40-character AWS secret access key

Security: Never commit to version control or share publicly.

Role ARN

IAM role ARN for Edge Delta to assume. Recommended authentication method for production.

Format: arn:aws:iam::<account-id>:role/<role-name>

Example: arn:aws:iam::123456789012:role/EdgeDeltaS3Access

When to Use:

  • Role ARN: Production deployments (more secure, no long-lived credentials)
  • Access Keys: Development/testing only

External ID

Additional security layer for IAM role assumption. Required when role’s trust policy requires it.

Format: String matching IAM role trust policy condition

Example: edgedelta-s3-external-id-12345

When Required: Cross-account access or when role trust policy specifies external ID condition

Advanced Settings

Compression

Compression format of files in S3 bucket. Edge Delta decompresses files during ingestion.

Values: uncompressed, gzip, zstd, snappy

Default: uncompressed

Examples:

  • gzip - For CloudTrail logs (.gz files)
  • uncompressed - For uncompressed log files

Note: If files have different compression formats, configure multiple connectors

File Name Filter

Regex pattern matching S3 object keys (full paths) to process. Filters which files to download.

Format: Regular expression evaluated against full S3 object key

Examples:

  • .*\.log$ - Only files ending in .log
  • ^logs/application/.* - Only files with prefix logs/application/
  • .*2024-10-.*\.log$ - Log files from October 2024
  • .*\.(log|json|txt)$ - Files with .log, .json, or .txt extensions

Cost Optimization: Use specific filters to reduce S3 GET requests and data transfer

S3 Configuration

AWS service-specific S3 configuration block. Overrides base AWS config.

Fields:

  • Region: AWS region for S3 service
  • AWS Key ID: Access key ID for S3 (overrides base config)
  • AWS Secret Key: Secret key for S3 (overrides base config)
  • Role ARN: IAM role for S3 access (overrides base config)
  • External ID: External ID for S3 role assumption

When to Use: Cross-region deployments, separate credentials for S3 vs SQS, or custom S3 endpoints

SQS Configuration

AWS service-specific SQS configuration block. Overrides base AWS config.

Fields:

  • Region: AWS region for SQS service
  • AWS Key ID: Access key ID for SQS (overrides base config)
  • AWS Secret Key: Secret key for SQS (overrides base config)
  • Role ARN: IAM role for SQS access (overrides base config)
  • External ID: External ID for SQS role assumption

Performance Tuning: Configure max messages and long polling for better throughput; use service-specific regions for cross-region queue access

Metadata Level (Resource Attributes)

This option is used to define which detected resources and attributes to add to each data item as it is ingested by Edge Delta. You can select:

  • Required Only: This option includes the minimum required resources and attributes for Edge Delta to operate.
  • Default: This option includes the required resources and attributes plus those selected by Edge Delta
  • High: This option includes the required resources and attributes along with a larger selection of common optional fields.
  • Custom: With this option selected, you can choose which attributes and resources to include. The required fields are selected by default and can’t be unchecked.

Based on your selection in the GUI, the source_metadata YAML is populated as two dictionaries (resource_attributes and attributes) with Boolean values.

See Choose Data Item Metadata for more information on selecting metadata.

S3-specific metadata included:

  • S3 bucket name - Source bucket
  • S3 object key - Full object path
  • Object size - File size in bytes
  • Last modified timestamp - When object was last modified

Metadata Level (Attributes)

Additional attribute-level metadata fields to include.

Default: ed.env.id

Rate Limit

The rate_limit parameter enables you to control data ingestion based on system resource usage. This advanced setting helps prevent source nodes from overwhelming the agent by automatically throttling or stopping data collection when CPU or memory thresholds are exceeded.

Use rate limiting to prevent runaway log collection from overwhelming the agent in high-volume sources, protect agent stability in resource-constrained environments with limited CPU/memory, automatically throttle during bursty traffic patterns, and ensure fair resource allocation across source nodes in multi-tenant deployments.

When rate limiting triggers, pull-based sources (File, S3, HTTP Pull) stop fetching new data, push-based sources (HTTP, TCP, UDP, OTLP) reject incoming data, and stream-based sources (Kafka, Pub/Sub) pause consumption. Rate limiting operates at the source node level, where each source with rate limiting enabled independently monitors and enforces its own thresholds.

Configuration Steps:

  1. Click Add New in the Rate Limit section
  2. Click Add New for Evaluation Policy
  3. Select Policy Type:
  • CPU Usage: Monitors CPU consumption and rate limits when usage exceeds defined thresholds. Use for CPU-intensive sources like file parsing or complex transformations.
  • Memory Usage: Monitors memory consumption and rate limits when usage exceeds defined thresholds. Use for memory-intensive sources like large message buffers or caching.
  • AND (composite): Combines multiple sub-policies with AND logic. All sub-policies must be true simultaneously to trigger rate limiting. Use when you want conservative rate limiting (both CPU and memory must be high).
  • OR (composite): Combines multiple sub-policies with OR logic. Any sub-policy can trigger rate limiting. Use when you want aggressive rate limiting (either CPU or memory being high triggers).
  1. Select Evaluation Mode. Choose how the policy behaves when thresholds are exceeded:
  • Enforce (default): Actively applies rate limiting when thresholds are met. Pull-based sources (File, S3, HTTP Pull) stop fetching new data, push-based sources (HTTP, TCP, UDP, OTLP) reject incoming data, and stream-based sources (Kafka, Pub/Sub) pause consumption. Use in production to protect agent resources.
  • Monitor: Logs when rate limiting would occur without actually limiting data flow. Use for testing thresholds before enforcing them in production.
  • Passthrough: Disables rate limiting entirely while keeping the configuration in place. Use to temporarily disable rate limiting without removing configuration.
  1. Set Absolute Limits and Relative Limits (for CPU Usage and Memory Usage policies)

Note: If you specify both absolute and relative limits, the system evaluates both conditions and rate limiting triggers when either condition is met (OR logic). For example, if you set absolute limit to 1.0 CPU cores and relative limit to 50%, rate limiting triggers when the source uses either 1 full core OR 50% of available CPU, whichever happens first.

  • For CPU Absolute Limits: Enter value in full core units:

    • 0.1 = one-tenth of a CPU core
    • 0.5 = half a CPU core
    • 1.0 = one full CPU core
    • 2.0 = two full CPU cores

  • For CPU Relative Limits: Enter percentage of total available CPU (0-100):

    • 50 = 50% of available CPU
    • 75 = 75% of available CPU
    • 85 = 85% of available CPU

  • For Memory Absolute Limits: Enter value in bytes

    • 104857600 = 100Mi (100 × 1024 × 1024)
    • 536870912 = 512Mi (512 × 1024 × 1024)
    • 1073741824 = 1Gi (1 × 1024 × 1024 × 1024)

  • For Memory Relative Limits: Enter percentage of total available memory (0-100)

    • 60 = 60% of available memory
    • 75 = 75% of available memory
    • 80 = 80% of available memory
  1. Set Refresh Interval (for CPU Usage and Memory Usage policies). Specify how frequently the system checks resource usage:
  • Recommended Values:
    • 10s to 30s for most use cases
    • 5s to 10s for high-volume sources requiring quick response
    • 1m or higher for stable, low-volume sources

The system fetches current CPU/memory usage at the specified refresh interval and uses that value for evaluation until the next refresh. Shorter intervals provide more responsive rate limiting but incur slightly higher overhead, while longer intervals are more efficient but slower to react to sudden resource spikes.

The GUI generates YAML as follows:

# Simple CPU-based rate limiting
nodes:
  - name: <node name>
    type: <node type>
    rate_limit:
      evaluation_policy:
        policy_type: cpu_usage
        evaluation_mode: enforce
        absolute_limit: 0.5  # Limit to half a CPU core
        refresh_interval: 10s

# Simple memory-based rate limiting
nodes:
  - name: <node name>
    type: <node type>
    rate_limit:
      evaluation_policy:
        policy_type: memory_usage
        evaluation_mode: enforce
        absolute_limit: 536870912  # 512Mi in bytes
        refresh_interval: 30s

Composite Policies (AND / OR)

When using AND or OR policy types, you define sub-policies instead of limits. Sub-policies must be siblings (at the same level)—do not nest sub-policies within other sub-policies. Each sub-policy is independently evaluated, and the parent policy’s evaluation mode applies to the composite result.

  • AND Logic: All sub-policies must evaluate to true at the same time to trigger rate limiting. Use when you want conservative rate limiting (limit only when CPU AND memory are both high).
  • OR Logic: Any sub-policy evaluating to true triggers rate limiting. Use when you want aggressive protection (limit when either CPU OR memory is high).

Configuration Steps:

  1. Select AND (composite) or OR (composite) as the Policy Type
  2. Choose the Evaluation Mode (typically Enforce)
  3. Click Add New under Sub-Policies to add the first condition
  4. Configure the first sub-policy by selecting policy type (CPU Usage or Memory Usage), selecting evaluation mode, setting absolute and/or relative limits, and setting refresh interval
  5. In the parent policy (not within the child), click Add New again to add a sibling sub-policy
  6. Configure additional sub-policies following the same pattern

The GUI generates YAML as follows:

# AND composite policy - both CPU AND memory must exceed limits
nodes:
  - name: <node name>
    type: <node type>
    rate_limit:
      evaluation_policy:
        policy_type: and
        evaluation_mode: enforce
        sub_policies:
          # First sub-policy (sibling)
          - policy_type: cpu_usage
            evaluation_mode: enforce
            absolute_limit: 0.75  # Limit to 75% of one core
            refresh_interval: 15s
          # Second sub-policy (sibling)
          - policy_type: memory_usage
            evaluation_mode: enforce
            absolute_limit: 1073741824  # 1Gi in bytes
            refresh_interval: 15s

# OR composite policy - either CPU OR memory can trigger
nodes:
  - name: <node name>
    type: <node type>
    rate_limit:
      evaluation_policy:
        policy_type: or
        evaluation_mode: enforce
        sub_policies:
          - policy_type: cpu_usage
            evaluation_mode: enforce
            relative_limit: 85  # 85% of available CPU
            refresh_interval: 20s
          - policy_type: memory_usage
            evaluation_mode: enforce
            relative_limit: 80  # 80% of available memory
            refresh_interval: 20s

# Monitor mode for testing thresholds
nodes:
  - name: <node name>
    type: <node type>
    rate_limit:
      evaluation_policy:
        policy_type: memory_usage
        evaluation_mode: monitor  # Only logs, doesn't limit
        relative_limit: 70  # Test at 70% before enforcing
        refresh_interval: 30s

How to Use the S3 Connector

The S3 connector integrates seamlessly with AI Team, enabling AI-powered analysis of archived logs and historical datasets. AI teammates automatically leverage S3-ingested data to investigate historical incidents, analyze trends, monitor AWS services, and detect anomalies in long-term storage.

Use Case: CloudTrail Log Security Monitoring

Analyze AWS CloudTrail logs for security monitoring and compliance. AI teammates detect unauthorized access attempts, privilege escalation, and suspicious API activity. When combined with PagerDuty alerts, teammates automatically investigate security incidents by querying CloudTrail logs and identifying attack patterns.

Configuration: SQS URL: https://sqs.us-east-1.amazonaws.com/.../cloudtrail-notifications, Region: us-east-1, Role ARN: arn:aws:iam::.../EdgeDeltaCloudTrailAccess, Compression: gzip, File Name Filter: .*CloudTrail.*\.json\.gz$

Use Case: Application Log Archive Analysis

Query archived application logs for historical incident investigation and trend analysis. AI teammates perform root cause analysis by correlating archived logs with infrastructure metrics, discovering patterns in recurring issues. This is valuable for troubleshooting problems that occurred weeks or months ago—teammates identify historical patterns and provide insights.

Configuration: SQS URL: https://sqs.us-west-2.amazonaws.com/.../app-log-notifications, Region: us-west-2, Access Key ID/Secret Key, Compression: uncompressed, File Name Filter: ^applications/payment-service/.*\.log$

Use Case: VPC Flow Log Network Analysis

Detect network security threats by analyzing VPC Flow Logs. AI teammates identify port scanning, data exfiltration attempts, and suspicious network patterns. When integrated with Jira, teammates automatically document network security findings by querying flow logs and creating tickets with diagnostic details.

Configuration: SQS URL: https://sqs.us-east-1.amazonaws.com/.../vpc-flow-notifications, Region: us-east-1, Role ARN: arn:aws:iam::.../EdgeDeltaVPCFlowAccess, Compression: gzip, File Name Filter: .*vpcflowlogs.*\.gz$

Troubleshooting

No objects being processed: Verify S3 event notifications configured (AWS Console → S3 → Properties → Event notifications). Check SQS queue has messages (aws sqs get-queue-attributes --queue-url URL --attribute-names ApproximateNumberOfMessages). Verify Edge Delta has S3 and SQS permissions. Test file name filter regex against actual S3 object keys.

Only some files processed: File name filter may be too restrictive. Regex evaluates against full S3 object key (complete path). Test regex against example keys. Remember to escape special characters (use .*\.log$ not *.log).

Access denied errors: Verify IAM role has s3:GetObject, s3:ListBucket for bucket and sqs:ReceiveMessage, sqs:DeleteMessage, sqs:GetQueueAttributes for queue. Check Role ARN is correct and trust policy allows Edge Delta to assume role. For access keys, confirm IAM user has required permissions.

Role assumption fails: IAM role trust policy doesn’t allow Edge Delta. Check trust policy includes statement allowing sts:AssumeRole. If using External ID, verify it matches between connector and role trust policy condition.

Messages accumulating in SQS: Verify Edge Delta agent running in target environment. Check network connectivity to SQS endpoint (especially in VPC). Review agent logs for processing errors. Increase SQS visibility timeout if processing is slow.

High SQS costs: Enable long polling to reduce empty receives and costs. Configure in Advanced Settings (SQS Configuration).

Files fail to decompress: Compression setting must match actual file format. Verify file compression (check extensions, test manual decompression). For multiple compression formats, configure separate connectors with file name filters.

Large files cause memory issues: Ensure agents have sufficient memory for largest files (compressed files expand significantly). Implement rate limiting to prevent simultaneous large file processing. Use file name filter to exclude exceptionally large files.

High S3/SQS costs: Implement S3 Lifecycle policies to transition older logs to cheaper storage (Glacier after 90 days). Use file name filter to limit downloads. Store files compressed with gzip. Enable SQS long polling. Consolidate connectors to reduce redundant GET requests.

Next Steps

For additional help, visit AI Team Support.
