Edge Delta Stateful Alert Processor

Overview

The Stateful Alert processor detects alert conditions in your logs by matching patterns from a lookup table, then tracks state across events to reduce alert noise through intelligent deduplication. When an alert condition is detected, the processor enriches the log with alert metadata and determines whether to send a notification based on the current state.

Key capabilities:

• Pattern-based detection: Match log content against regex patterns defined in a lookup table
• Stateful correlation: Track alert state across events using Redis for persistence
• Deduplication: Suppress duplicate alerts and recoveries to reduce notification noise
• Threshold alerting: Trigger alerts only after N matching events occur within a time window
• Recovery detection: Automatically detect when alert conditions clear
• Flexible output: Filter downstream notifications using the skip_webhook attribute

Prerequisites

Redis instance

The Stateful Alert processor requires a Redis instance to persist alert state across events and agent restarts. You can use:

• A managed Redis service (AWS ElastiCache, Azure Cache for Redis, etc.)
• A self-hosted Redis instance
• Redis cluster for high availability

Lookup table

You need a lookup table containing your alert patterns. The table must include these columns:

See Lookup Tables for information on creating and managing lookup tables.

How it works

The processor evaluates each incoming log against patterns in the lookup table:

State management

The processor stores alert state in Redis using a hash key derived from configurable fields. This enables:

• Persistence: Alert state survives agent restarts
• Correlation: Group related events using hash key fields
• Expiration: Automatic cleanup of stale state entries

Deduplication logic

When a matching pattern is detected, the processor checks Redis to determine the current state:

• If no active alert exists, a new alert is triggered (status: alert)
• If an alert is already active, the event is marked as a duplicate (status: alert_duplicate)
• If a recovery pattern matches an active alert, recovery is triggered (status: recovery)
• If a recovery pattern matches but no alert is active, it is marked as a duplicate (status: recovery_duplicate)

The skip_webhook attribute indicates whether downstream systems should send notifications:

• skip_webhook: false - New alerts and recoveries that should trigger notifications
• skip_webhook: true - Duplicates, accumulating events, and internal scans

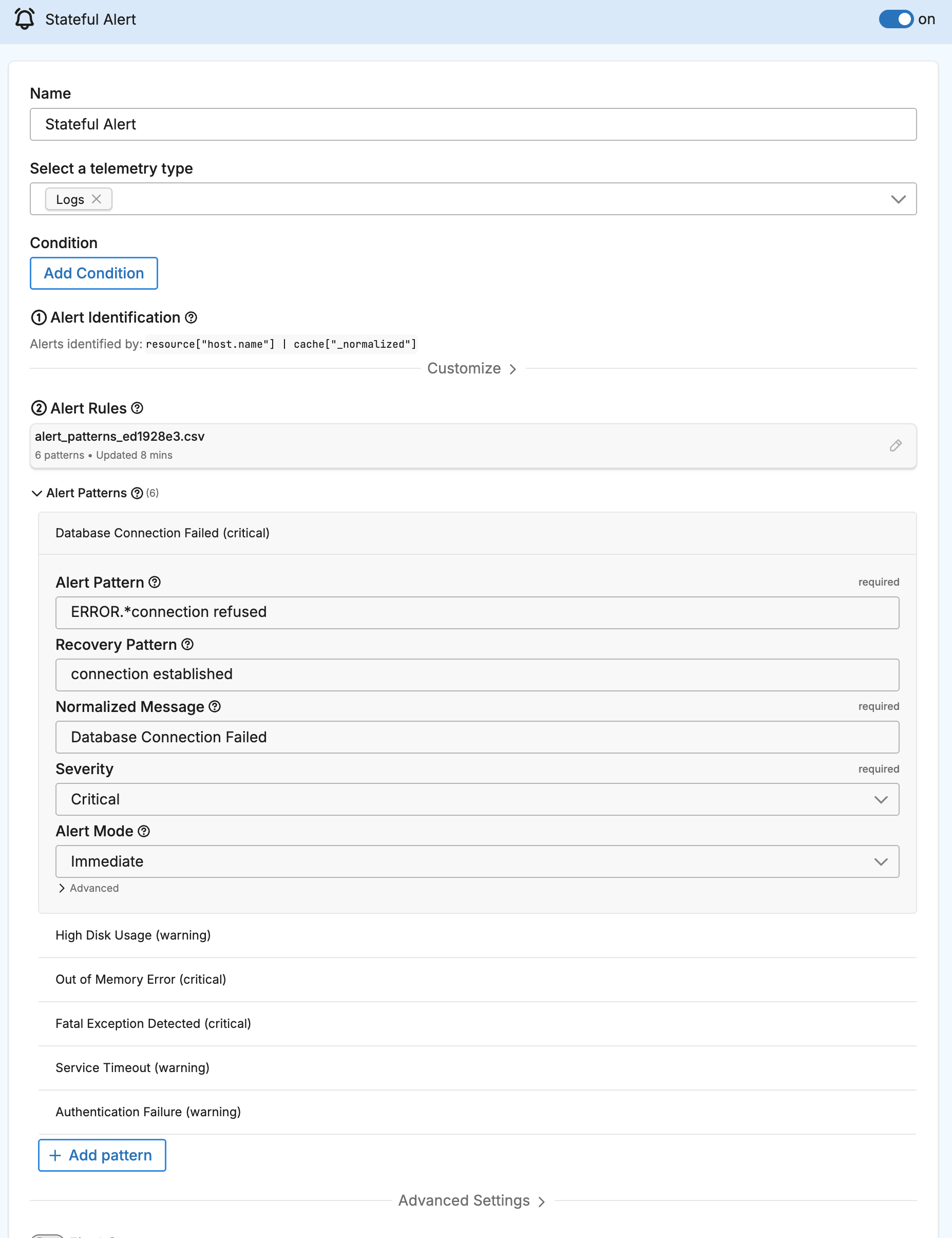

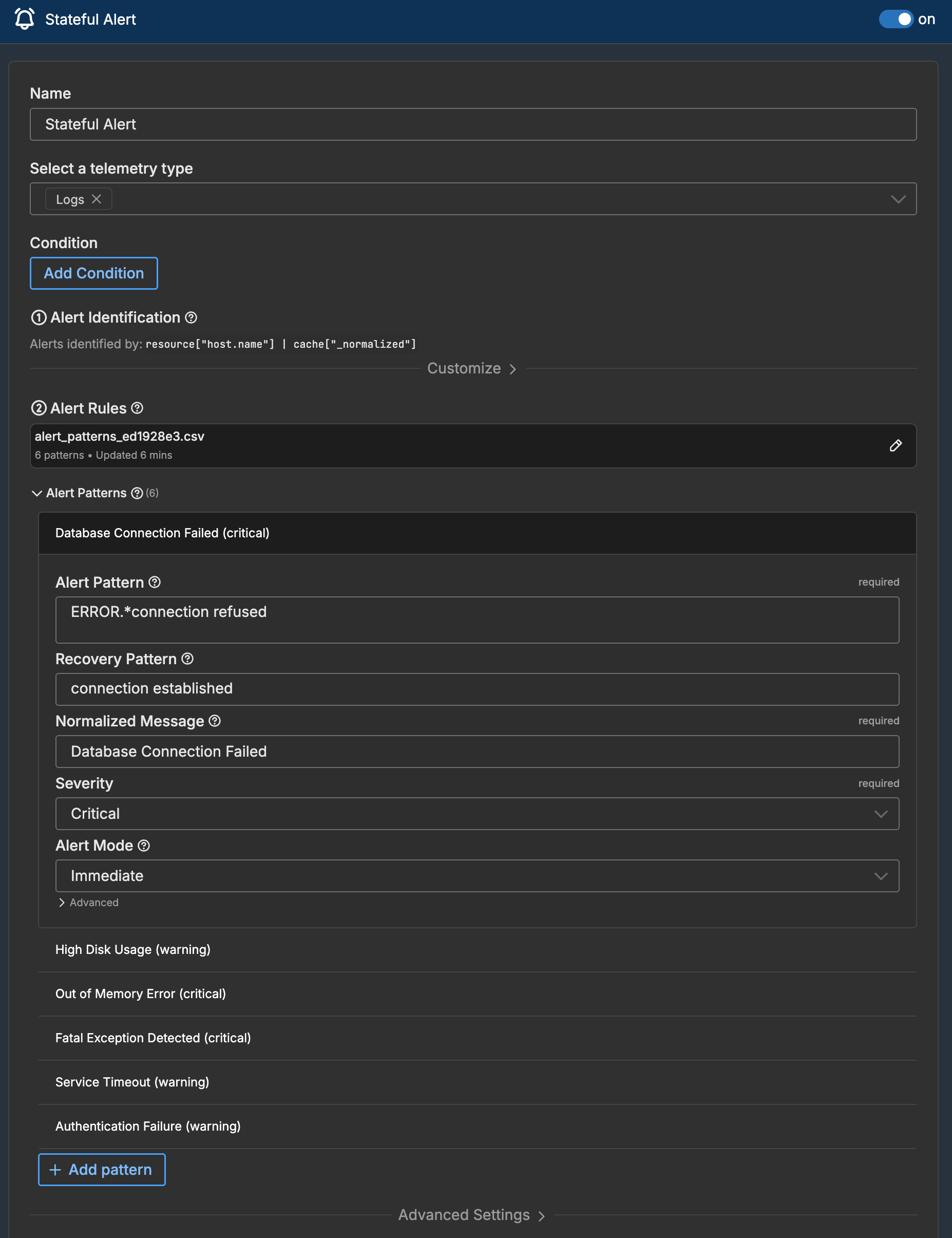

Configuration

You configure the Stateful Alert processor using either a CSV lookup table or static patterns defined directly in the UI.

CSV lookup table mode

Select an existing lookup table containing your alert patterns:

1. In the Visual Pipeline Builder, add a Stateful Alert processor to your sequence
2. Select CSV Lookup Table as the configuration source
3. Choose your lookup table from the dropdown
4. Map the columns to their respective fields:
   • Alert Pattern Column: Column containing alert regex patterns
   • Recovery Pattern Column: Column containing recovery regex patterns
   • Normalized Message Column: Column containing alert descriptions
   • Severity Column: Column containing severity levels
   • Alert Schema Column: Column containing alerting mode configuration
5. Configure Redis connection settings
6. Optionally configure Hash Key fields for correlation

Example lookup table CSV:

alert_pattern,recovery_pattern,normalized_message,severity,alert_schema
ERROR.*connection refused,connection established,Database Connection Failed,critical,immediate
disk usage.*9[0-9]%,disk usage.*[0-7][0-9]%,High Disk Usage,warning,"threshold,3,300,1,60"
OOM.*killed,,Out of Memory Error,critical,immediate

YAML configuration

The processor generates OTTL transform statements. Here is an example configuration:

- name: Multi Processor
  type: sequence
  processors:
  - type: ottl_transform
    name: Stateful Alert
    statements: |-
      # Pattern matching and state management logic
      # (auto-generated by the Visual Pipeline Builder)

Alert schema modes

The alert_schema column defines how the processor triggers alerts:

Immediate mode

Format: immediate or immediate,E

Triggers an alert on the first pattern match. If a recovery pattern is defined, the alert clears when the recovery pattern matches.

The following examples show common immediate mode configurations:

• immediate - Alert on first match, recover on recovery pattern
• immediate,3600 - Alert on first match, auto-clear after 1 hour if no recovery

Threshold mode

Format: threshold,N,T,M,W or threshold,N,T,M,W,E

Triggers an alert only after N matching events occur within T seconds. Optionally requires M recovery events within W seconds to clear.

The following examples show common threshold mode configurations:

• threshold,3,300,1,60 - Alert after 3 events in 5 minutes, recover after 1 event in 1 minute
• threshold,5,60,2,120,1800 - Alert after 5 events in 1 minute, recover after 2 events in 2 minutes, auto-clear after 30 minutes

Alert status values

The processor sets the @alert.status attribute to indicate the result of processing:

Output attributes

The processor enriches matching logs with the following attributes:

Options

Select telemetry type

The Stateful Alert processor operates on logs only.

Configuration source

Choose how to define alert patterns:

• CSV Lookup Table: Use patterns from an existing lookup table
• Static Patterns: Define patterns directly in the processor configuration

Lookup table

When using CSV mode, select the lookup table containing your alert patterns.

Pattern columns

Map lookup table columns to their respective functions:

• Alert Pattern Column: Contains regex patterns for alert conditions
• Recovery Pattern Column: Contains regex patterns for recovery conditions
• Normalized Message Column: Contains human-readable alert descriptions
• Severity Column: Contains severity levels
• Alert Schema Column: Contains alerting mode configuration

Match mode

Choose how patterns are matched against log content:

• regex - Regular expression matching (default)
• exact - Exact string matching
• contain - Substring matching
• prefix - Prefix matching
• suffix - Suffix matching

Redis configuration

Configure the Redis connection for state persistence:

• Address: Redis server address (e.g., redis:6379)
• Password: Authentication password (if required)
• Username: Authentication username (if required)
• Database: Redis database number (default: 0)
• TLS: Enable TLS encryption

Hash key configuration

Define which fields to use for correlating related events. Events with the same hash key values are grouped together for state tracking.

Common hash key fields include:

• host.name - Correlate by host
• service.name - Correlate by service
• attributes["error_code"] - Correlate by specific attribute

Reload period

How often to refresh the lookup table from its source. Default is 5 minutes.

Examples

Basic error alerting

Alert immediately when critical errors occur:

Lookup table:

alert_pattern,recovery_pattern,normalized_message,severity,alert_schema
FATAL.*exception,,Fatal Exception Detected,critical,immediate
ERROR.*database.*down,database.*connected,Database Down,critical,immediate

Rate-based alerting

Alert when error rate exceeds threshold:

Lookup table:

alert_pattern,recovery_pattern,normalized_message,severity,alert_schema
ERROR.*rate limit exceeded,,Rate Limit Exceeded,warning,"threshold,5,60,1,300"

This triggers an alert after 5 rate limit errors within 1 minute, and recovers after 1 successful request within 5 minutes.

Multi-field correlation

Use hash key fields to track alerts per host and service:

Hash key configuration:

• host.name
• service.name

This creates separate alert states for each host/service combination, so an error on host-1/api-service does not affect the alert state for host-2/api-service.

Webhook integration

Filter notifications to only send actual alerts and recoveries:

In your webhook output, add a condition to filter on skip_webhook:

- type: webhook
  name: Alert Notifications
  condition: 'attributes["alert"]["skip_webhook"] == false'
  url: https://your-webhook-endpoint.com

This ensures only new alerts and recoveries trigger notifications, while duplicates and accumulating events are suppressed.

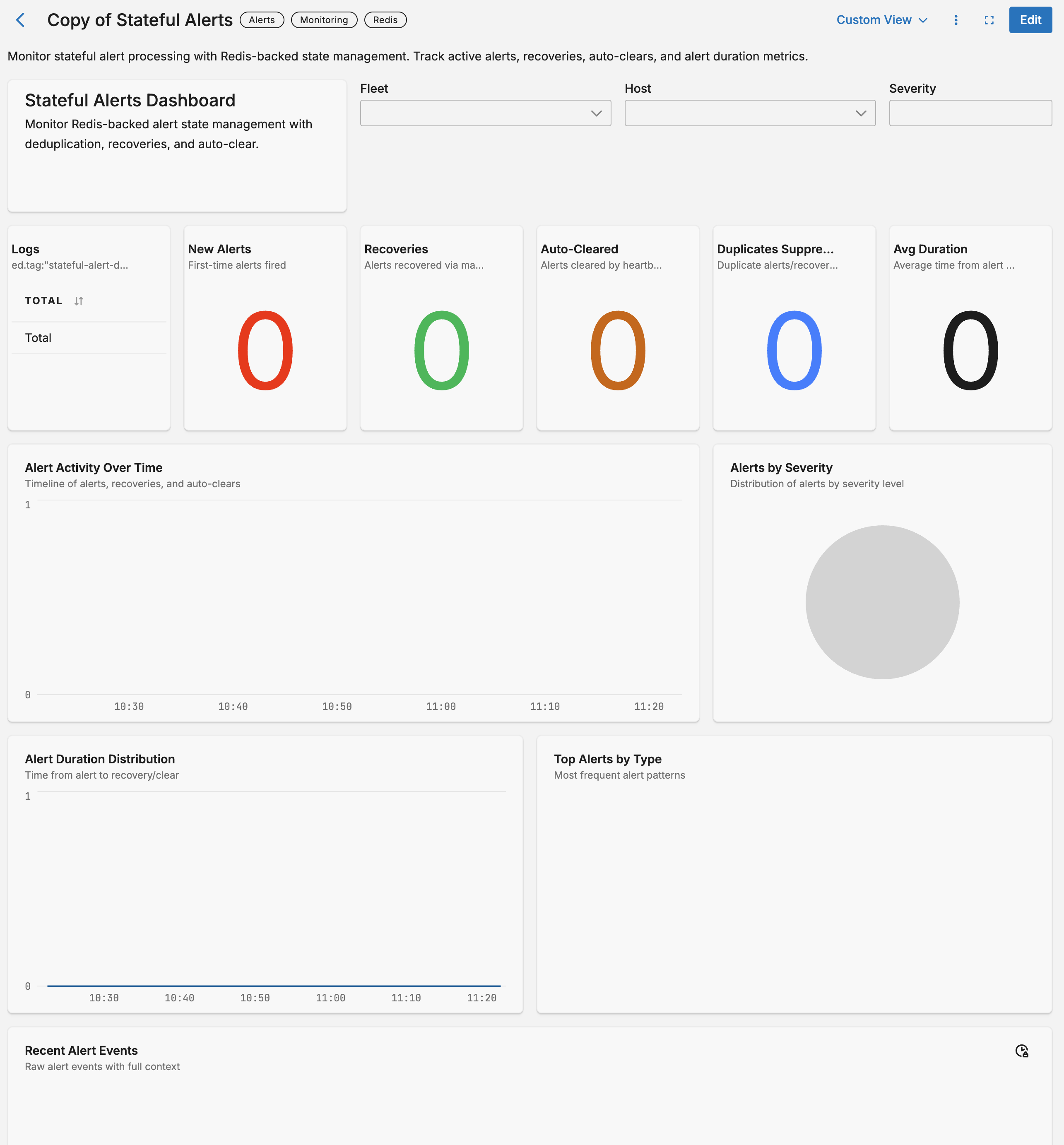

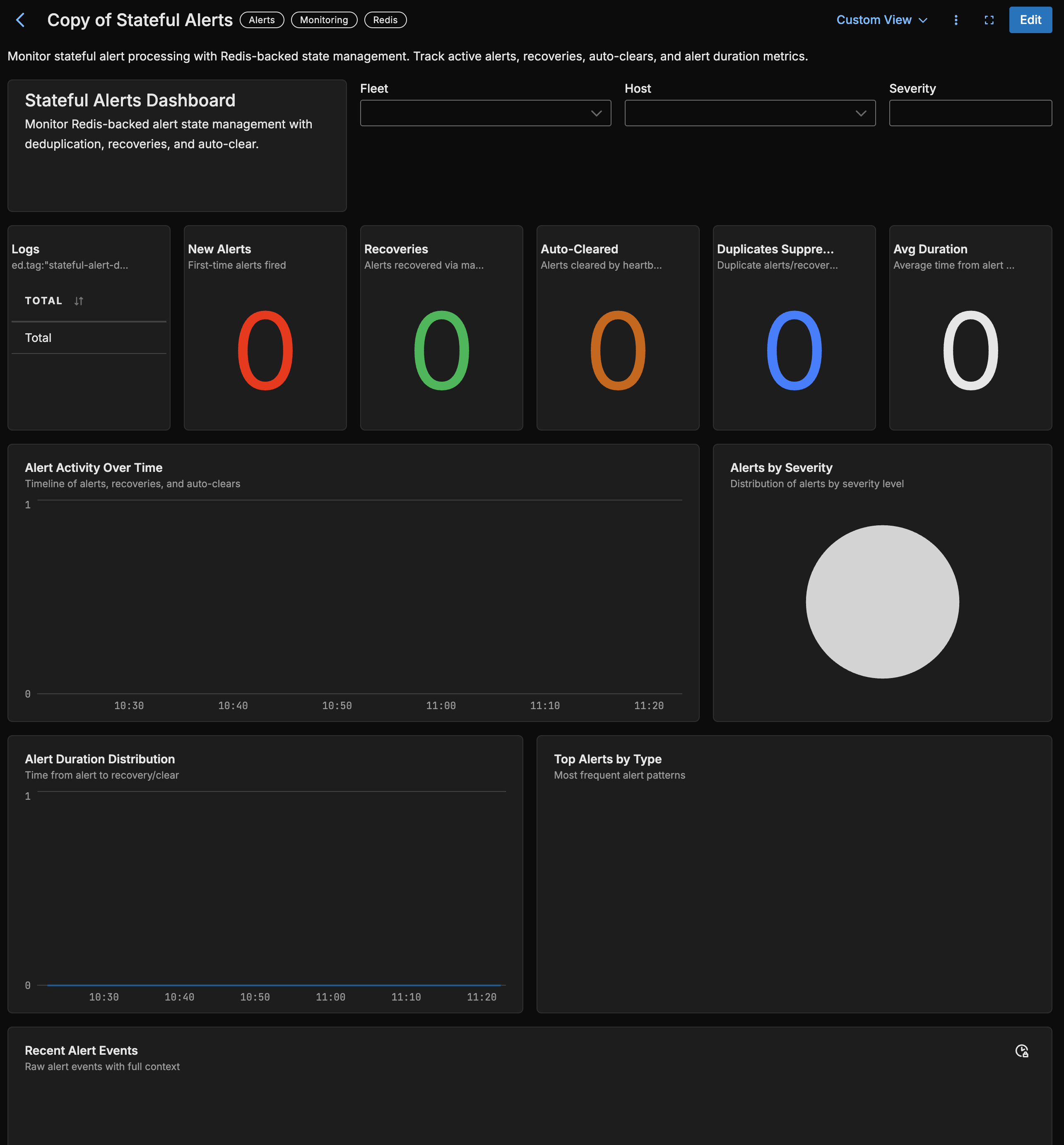

Dashboard

Edge Delta provides a default Stateful Alerts dashboard for monitoring alert activity.

The dashboard includes:

• Alert Triggers: Count of new alerts triggered
• Recoveries: Count of alerts that recovered
• Accumulating: Events building toward threshold
• Duplicates Suppressed: Count of suppressed duplicate notifications
• Alert Transitions Over Time: Timeline of alert status changes
• Alerts by Severity: Distribution across severity levels
• Recent Notifications: Raw log table of alerts and recoveries sent downstream

Troubleshooting

Alerts not triggering

Possible causes:

1. Pattern not matching: Verify your regex pattern matches the actual log content. Test patterns using a regex tool.
2. Lookup table not loaded: Check that the lookup table exists and contains valid data.
3. Column mapping incorrect: Verify the column names match your lookup table headers.

Duplicates not being suppressed

Possible causes:

1. Redis not connected: Verify Redis connection settings and connectivity.
2. Hash key mismatch: Ensure hash key fields are consistent across related events.
3. State expired: Check if TTL settings are appropriate for your use case.

Recovery not detecting

Possible causes:

1. Recovery pattern missing: Ensure recovery_pattern column contains valid patterns.
2. Recovery pattern not matching: The recovery pattern must match the log content when the condition clears.
3. No active alert: Recovery only triggers if an alert is currently active.

Redis connectivity issues

Possible causes:

1. Network access: Verify the agent can reach the Redis server.
2. Authentication: Check username/password if Redis requires authentication.
3. TLS configuration: Enable TLS if your Redis server requires encrypted connections.
