Edge Delta Unroll JSON Processor

The Edge Delta Unroll JSON processor unrolls events from a single JSON object.

  6 minute read

Overview

The JSON Unroll processor transforms structured JSON logs by unrolling nested JSON array objects into separate logs, making the data easier to monitor and analyze. Each output log inherits the top level fields and resources from the source log.

  • incoming_data_types: log
  • outgoing_data_types: log

Example Configuration - Unroll from Body

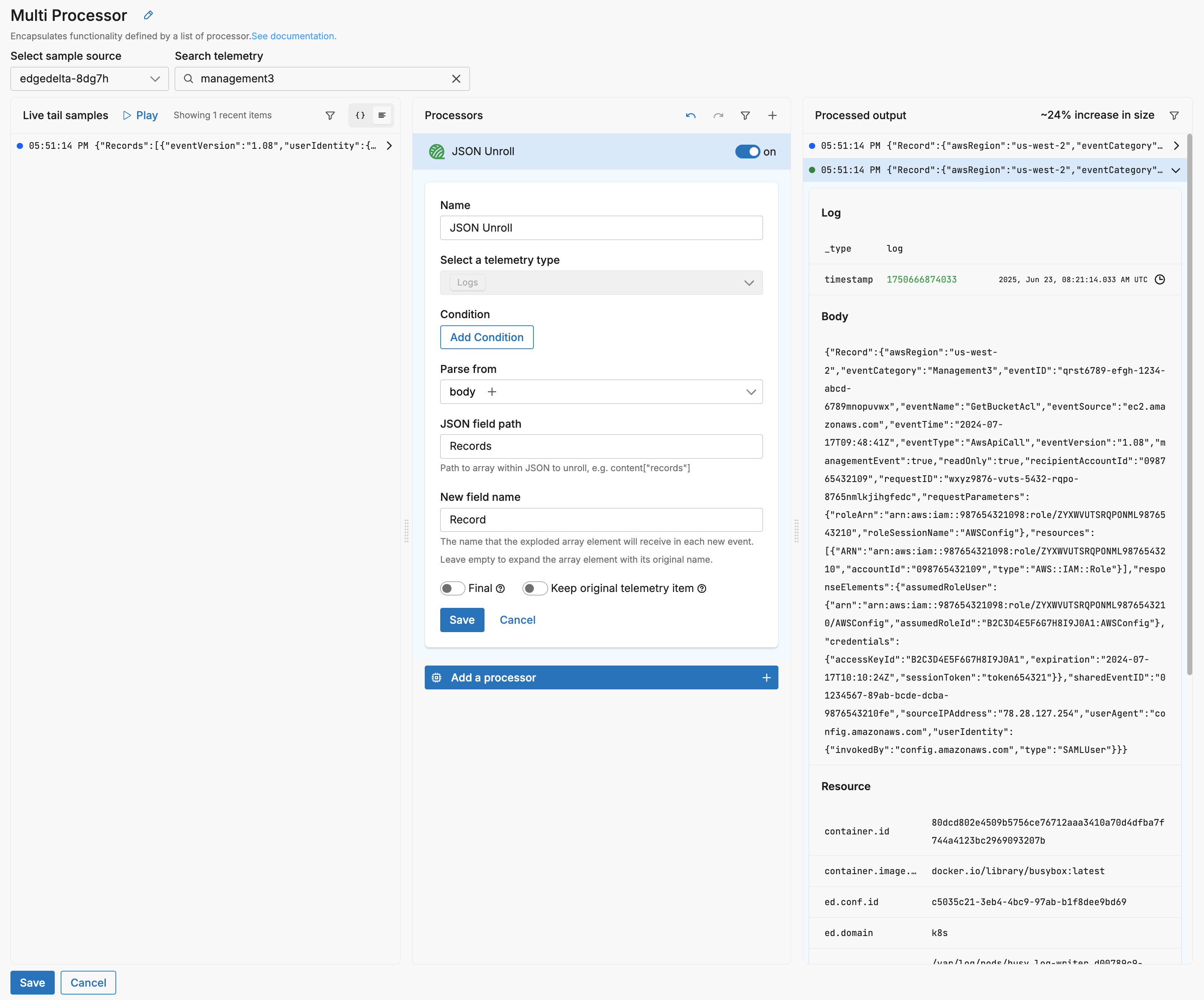

The following configuration unrolls data from the Records fields in each log, and creates a new log for each record. Each generated log consists of a Record field at the top level within the body.

In this example the single input log has been unrolled into two distinct logs - one per event.

nodes:
- name: kubernetes_input_ab15_multiprocessor
  type: sequence
  user_description: Multi Processor
  processors:
  - type: json_unroll
    metadata: '{"id":"o8wIHKtPQX8wBgJ3EUUoO","type":"json_unroll","name":"JSON Unroll"}'
    data_types:
    - log
    field_path: body
    new_field_name: Record
    json_field_path: Records

Example Input

Note: Sensitive information has been replaced with dummy data.

{
  "Records": [
    {
      "eventVersion": "1.08",
      "userIdentity": {
        "type": "AssumedRole",
        "invokedBy": "secondexample.amazonaws.com"
      },
      "eventTime": "2024-07-17T09:48:41Z",
      "eventSource": "config.amazonaws.com",
      "eventName": "DescribeEventAggregates",
      "awsRegion": "us-west-2",
      "sourceIPAddress": "13.71.17.166",
      "userAgent": "config.amazonaws.com",
      "requestParameters": {
        "roleArn": "arn:aws:iam::123456789012:role/ABCDEFGHIJKLM123456789",
        "roleSessionName": "AWSConfig-BucketConfigCheck"
      },
      "responseElements": {
        "credentials": {
          "accessKeyId": "A1B2C3D4E5F6G7H8I9J0",
          "expiration": "2024-07-17T10:10:24Z",
          "sessionToken": "token123456"
        },
        "assumedRoleUser": {
          "assumedRoleId": "A1B2C3D4E5F6G7H8I9J0:AWSConfig-BucketConfigCheck",
          "arn": "arn:aws:iam::123456789012:role/ABCDEFGHIJKLM123456789/AWSConfig-BucketConfigCheck"
        }
      },
      "requestID": "abcd1234-efgh-5678-ijkl-9012mnopqrst",
      "eventID": "mnop5678-abcd-1234-efgh-5678ijklqrst",
      "readOnly": true,
      "resources": [
        {
          "accountId": "123456789012",
          "type": "AWS::IAM::Role",
          "ARN": "arn:aws:iam::123456789012:role/ABCDEFGHIJKLM123456789"
        }
      ],
      "eventType": "AwsApiCall",
      "managementEvent": true,
      "recipientAccountId": "123456789012",
      "sharedEventID": "01234567-89ab-cdef-edcb-a9876543210f",
      "eventCategory": "Management"
    },
    {
      "eventVersion": "1.08",
      "userIdentity": {
        "type": "SAMLUser",
        "invokedBy": "config.amazonaws.com"
      },
      "eventTime": "2024-07-17T09:48:41Z",
      "eventSource": "ec2.amazonaws.com",
      "eventName": "GetBucketAcl",
      "awsRegion": "us-west-2",
      "sourceIPAddress": "78.28.127.254",
      "userAgent": "config.amazonaws.com",
      "requestParameters": {
        "roleArn": "arn:aws:iam::987654321098:role/ZYXWVUTSRQPONML9876543210",
        "roleSessionName": "AWSConfig"
      },
      "responseElements": {
        "credentials": {
          "accessKeyId": "B2C3D4E5F6G7H8I9J0A1",
          "expiration": "2024-07-17T10:10:24Z",
          "sessionToken": "token654321"
        },
        "assumedRoleUser": {
          "assumedRoleId": "B2C3D4E5F6G7H8I9J0A1:AWSConfig",
          "arn": "arn:aws:iam::987654321098:role/ZYXWVUTSRQPONML9876543210/AWSConfig"
        }
      },
      "requestID": "wxyz9876-vuts-5432-rqpo-8765nmlkjihgfedc",
      "eventID": "qrst6789-efgh-1234-abcd-6789mnopuvwx",
      "readOnly": true,
      "resources": [
        {
          "accountId": "098765432109",
          "type": "AWS::IAM::Role",
          "ARN": "arn:aws:iam::987654321098:role/ZYXWVUTSRQPONML9876543210"
        }
      ],
      "eventType": "AwsApiCall",
      "managementEvent": true,
      "recipientAccountId": "098765432109",
      "sharedEventID": "01234567-89ab-bcde-dcba-9876543210fe",
      "eventCategory": "Management3"
    }
  ]
}

Example Output

After being unrolled, the source log is split into individual logs - one per record. This results in more logs but each log is shorter. Here is the unrolled log for the first Record:

Log 1:

{
  "Record": {
    "awsRegion": "us-west-2",
    "eventCategory": "Management",
    "eventID": "mnop5678-abcd-1234-efgh-5678ijklqrst",
    "eventName": "DescribeEventAggregates",
    "eventSource": "config.amazonaws.com",
    "eventTime": "2024-07-17T09:48:41Z",
    "eventType": "AwsApiCall",
    "eventVersion": "1.08",
    "managementEvent": true,
    "readOnly": true,
    "recipientAccountId": "123456789012",
    "requestID": "abcd1234-efgh-5678-ijkl-9012mnopqrst",
    "requestParameters": {
      "roleArn": "arn:aws:iam::123456789012:role/ABCDEFGHIJKLM123456789",
      "roleSessionName": "AWSConfig-BucketConfigCheck"
    },
    "resources": [
      {
        "ARN": "arn:aws:iam::123456789012:role/ABCDEFGHIJKLM123456789",
        "accountId": "123456789012",
        "type": "AWS::IAM::Role"
      }
    ],
    "responseElements": {
      "assumedRoleUser": {
        "arn": "arn:aws:iam::123456789012:role/ABCDEFGHIJKLM123456789/AWSConfig-BucketConfigCheck",
        "assumedRoleId": "A1B2C3D4E5F6G7H8I9J0:AWSConfig-BucketConfigCheck"
      },
      "credentials": {
        "accessKeyId": "A1B2C3D4E5F6G7H8I9J0",
        "expiration": "2024-07-17T10:10:24Z",
        "sessionToken": "token123456"
      }
    },
    "sharedEventID": "01234567-89ab-cdef-edcb-a9876543210f",
    "sourceIPAddress": "13.71.17.166",
    "userAgent": "config.amazonaws.com",
    "userIdentity": {
      "invokedBy": "secondexample.amazonaws.com",
      "type": "AssumedRole"
    }
  }
}

Log 2:

{
  "Record": {
    "awsRegion": "us-west-2",
    "eventCategory": "Management3",
    "eventID": "qrst6789-efgh-1234-abcd-6789mnopuvwx",
    "eventName": "GetBucketAcl",
    "eventSource": "ec2.amazonaws.com",
    "eventTime": "2024-07-17T09:48:41Z",
    "eventType": "AwsApiCall",
    "eventVersion": "1.08",
    "managementEvent": true,
    "readOnly": true,
    "recipientAccountId": "098765432109",
    "requestID": "wxyz9876-vuts-5432-rqpo-8765nmlkjihgfedc",
    "requestParameters": {
      "roleArn": "arn:aws:iam::987654321098:role/ZYXWVUTSRQPONML9876543210",
      "roleSessionName": "AWSConfig"
    },
    "resources": [
      {
        "ARN": "arn:aws:iam::987654321098:role/ZYXWVUTSRQPONML9876543210",
        "accountId": "098765432109",
        "type": "AWS::IAM::Role"
      }
    ],
    "responseElements": {
      "assumedRoleUser": {
        "arn": "arn:aws:iam::987654321098:role/ZYXWVUTSRQPONML9876543210/AWSConfig",
        "assumedRoleId": "B2C3D4E5F6G7H8I9J0A1:AWSConfig"
      },
      "credentials": {
        "accessKeyId": "B2C3D4E5F6G7H8I9J0A1",
        "expiration": "2024-07-17T10:10:24Z",
        "sessionToken": "token654321"
      }
    },
    "sharedEventID": "01234567-89ab-bcde-dcba-9876543210fe",
    "sourceIPAddress": "78.28.127.254",
    "userAgent": "config.amazonaws.com",
    "userIdentity": {
      "invokedBy": "config.amazonaws.com",
      "type": "SAMLUser"
    }
  }
}

Options

condition

The condition parameter contains a conditional phrase of an OTTL statement. It restricts operation of the processor to only data items where the condition is met. Those data items that do not match the condition are passed without processing. You configure it in the interface and an OTTL condition is generated. It is optional. You can select one of the following operators:

Operator Name Description Example
== Equal to Returns true if both values are exactly the same attributes["status"] == "OK"
!= Not equal to Returns true if the values are not the same attributes["level"] != "debug"
> Greater than Returns true if the left value is greater than the right attributes["duration_ms"] > 1000
>= Greater than or equal Returns true if the left value is greater than or equal to the right attributes["score"] >= 90
< Less than Returns true if the left value is less than the right attributes["load"] < 0.75
<= Less than or equal Returns true if the left value is less than or equal to the right attributes["retries"] <= 3
matches Regex match Returns true if the string matches a regular expression isMatch(attributes["name"], ".*\\.name$"

It is defined in YAML as follows:

- name: _multiprocessor
  type: sequence
  processors:
  - type: <processor type>
    condition: attributes["request"]["path"] == "/json/view"

Parse from

This option specifies the field containing the JSON object that needs to be unrolled. It is specified using bracket notation and is optional. If left empty it defaults to body.

JSON Field path

This option specifies the location in the JSON object of the array that needs to be unrolled. It is specified as a string and is optional.

New field name

This parameter specifies the field under which to place the unrolled log contents within the body. It is specified as a string and is optional. If it is left out, the original array’s name will be used.

Final

Determines whether successfully processed data items should continue through the remaining processors in the same processor stack. If final is set to true, data items output by this processor are not passed to subsequent processors within the node—they are instead emitted to downstream nodes in the pipeline (e.g., a destination). Failed items are always passed to the next processor, regardless of this setting.

The UI provides a slider to configure this setting. The default is false. It is defined in YAML as follows:

- name: multiprocessor
  type: sequence
  processors:
    - type: <processor type>
    final: true

Keep original telemetry item

Controls whether the original, unmodified telemetry item is preserved after processing. If keep_item is set to true, the processor emits both:

  • The original telemetry item (e.g., a log), and
  • Any new item generated by the processor (e.g., a metric extracted from the log)

Both items are passed to the next processor in the stack unless final is also set.

Interaction with final

If final: true is enabled, any successfully processed data items, whether original, newly created, or both, exit the processor stack or node immediately. No subsequent processors within the same node are evaluated, although downstream processing elsewhere in the pipeline continues. This means:

  • If keep_item: true and final: true, both the original and processed items bypass the remaining processors in the current node and are forwarded to downstream nodes (such as destinations).
  • If keep_item: false and final: true, only the processed item continues beyond this processor, skipping subsequent processors in the stack, and the original item is discarded.

Note: If the data item fails to be processed, final has no effect, the item continues through the remaining processors in the node regardless of the keep_item setting.

The app provides a slider to configure keep_item. The default is false.

- name: ed_gateway_output_a3fa_multiprocessor
  type: sequence
  processors:
    - type: <processor_type>
      keep_item: true
      final: true
